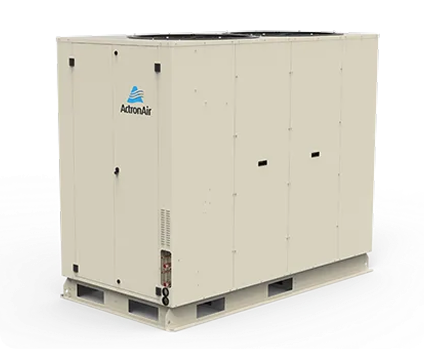

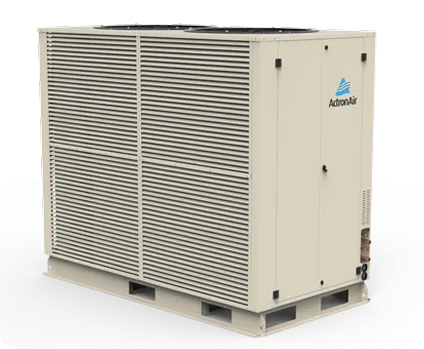

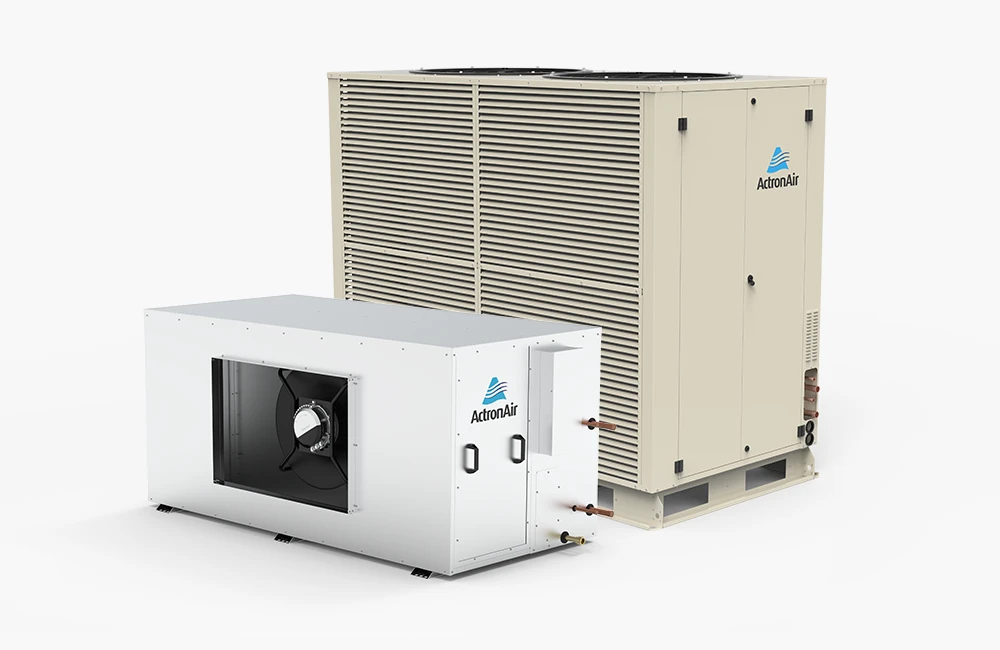

GENESIS Split Ducted

Reliable Comfort, Designed for Demanding Commercial Spaces

The ActronAir GENESIS Split Ducted Series is designed to deliver reliable, efficient comfort for large commercial spaces where performance, flexibility and serviceability matter. Built around R32 refrigerant, the range combines inverter driven performance, practical installation flexibility and commercial control options to support modern building requirements.

Suited to offices, schools, retail environments, warehouses and larger commercial facilities, GENESIS Split Ducted supports both new projects and retrofit applications where existing ductwork, plantroom access or site constraints need to be considered.

Capacities:

3 Phase
72.0kW, 85.0kW, 96.0kW

Compressor:

Inverter Scroll Compressor

Operating Range:

From -15ºC up to 57ºC

Product Features

Low GWP R32

Inverter Scroll
Compressor

ECM Variable
Speed Fans

Energy
Efficient

Installation
Flexibility

Adaptive
Defrost Logic

Louvered
Grille Guard

Commissioning
Tool (BCT)

Consistent, Efficient Performance

GENESIS Split Ducted uses Tru-Inverter technology and R32 inverter-driven compressors to support stable capacity control across a wide range of operating conditions. By adjusting output to meet real-time demand, the system helps reduce unnecessary energy use, improve comfort consistency and support lower operating costs over time.

Advanced Technology

A considered selection of components, including R32 inverter scroll compressors, VSD drives and EC plug fans, helps GENESIS Split Ducted deliver precise system control, improved operating efficiency and quieter performance.

The system is designed to adapt to changing cooling and heating demands, supporting stable comfort without relying on constant full-load operation.

Intuitive Controls

GENESIS offers a wide range of control options to support precise comfort management across commercial applications. This includes our award-winning NEO with an intuitive interface and smart dashboards, supported by a broader controls range including Group Controller and LC7 for functions such as after-hours operation and Modbus BMS connectivity.

Flexible Design

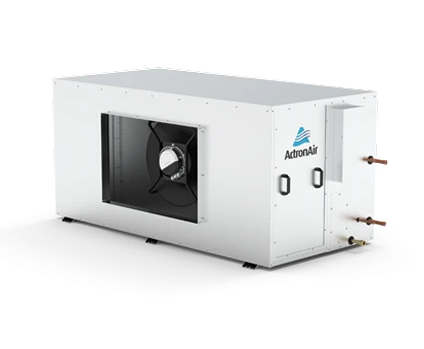

GENESIS Commercial Split Ducted indoor units are designed to support the varied demands of commercial installations, where site layouts, ceiling spaces and service access requirements can differ significantly.

To enhance installation adaptability, the indoor units offer an optional vertical discharge configuration, giving contractors greater flexibility to tailor the system layout to suit project-specific requirements while supporting effective airflow distribution and long-term serviceability.

Explore GENESIS Features

1 2 3

4 5 6

7 8

R32 Leak Detection Sensor

The built-in R32 Leak Detection Sensor
enhances safety by quickly and accurately
detecting refrigerant leaks. Designed for long-
term reliability, it self-monitors for up to 15 years, providing continuous protection and peace of
mind.

Double-Sloped Main Drain Tray

The main drain tray features a clever double- slope design, which greatly improves drainage efficiency and helps prevent water build-up within the unit.The main drain tray features a clever double- slope design, which greatly improves drainage efficiency and helps prevent water build-up within the unit.

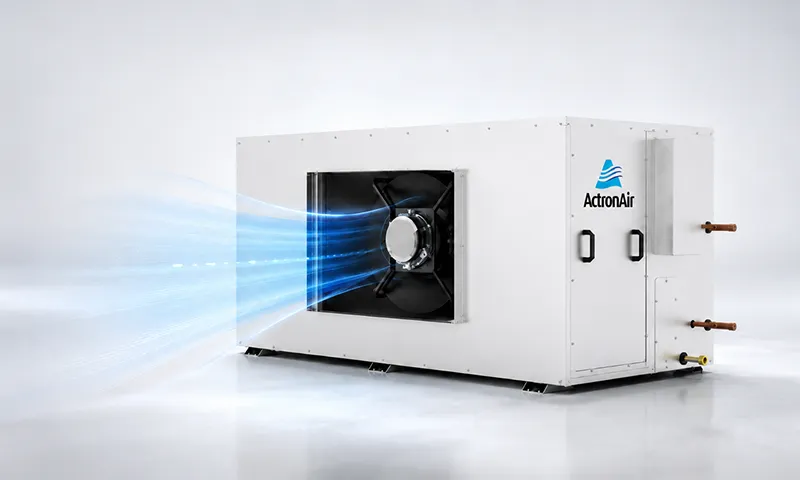

Indoor High Static EC Plug Fans

Designed for demanding applications, High Static EC Plug Fans deliver precise airflow control up to 500Pa, offering quieter operation, improved energy efficiency, and greater flexibility for commercial installations.Designed for demanding applications, High Static EC Plug Fans deliver precise airflow control up to 500Pa, offering quieter operation, improved energy efficiency, and greater flexibility for commercial installations.

Outdoor High Static EC Fans

Not only do these high static EC fans offer exceptional efficiency, but they also deliver a quieter performance. They are specifically designed to provide the rated outdoor airflow up to 90Pa.Not only do these high static EC fans offer exceptional efficiency, but they also deliver a quieter performance. They are specifically designed to provide the rated outdoor airflow up to 90Pa.

R32 Inverter Scroll Compressors

R32 inverter scroll compressors deliver precise capacity control to closely match real-time load demands. This results in higher efficiency at part load, more stable temperature control, and reduced energy consumption across a wide range of operating conditions.R32 inverter scroll compressors deliver precise capacity control to closely match real-time load demands. This results in higher efficiency at part load, more stable temperature control, and reduced energy consumption across a wide range of operating conditions.

Condensate Drain

The outdoor unit’s integrated condensate drain ensures efficient removal of excess moisture, helping to prevent water build-up, protect components, and maintain reliable performance in all conditions.

Louvred Grille Guard

Featuring a unique powder-coated louvered grille guard, this product ensures protection against Australia’s toughest conditions. From hailstorms to the relentless heat of the sun, this design is specifically engineered to provide a strong defence against the elements.Featuring a unique powder-coated louvered grille guard, this product ensures protection against Australia’s toughest conditions. From hailstorms to the relentless heat of the sun, this design is specifically engineered to provide a strong defence against the elements.

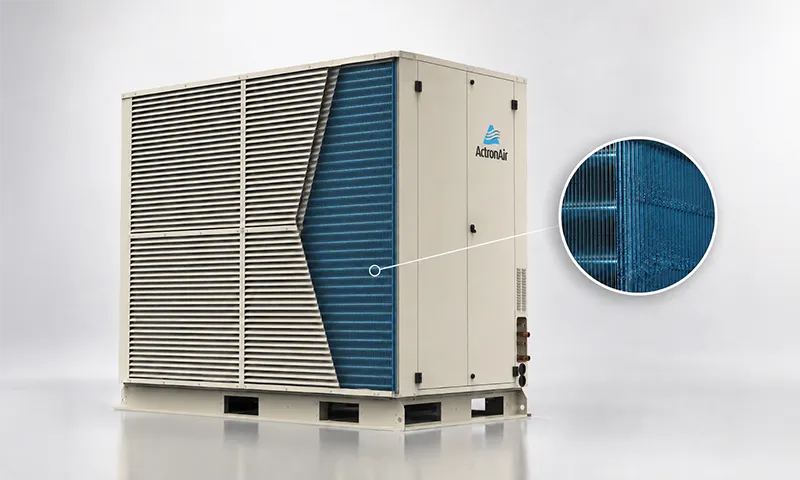

Hydrophilic Blue Fin Coil Coat

Hydrophilic Blue Fin coating enhances water run-off across the coil, minimising moisture retention and supporting efficient heat exchange. The coating also provides an additional layer of corrosion resistance, helping maintain performance in demanding outdoor environments.Hydrophilic Blue Fin coating enhances water run-off across the coil, minimising moisture retention and supporting efficient heat exchange. The coating also provides an additional layer of corrosion resistance, helping maintain performance in demanding outdoor environments.

Performance

Enhanced Capacity Flexibility  
with Tru-Max

GENESIS Commercial Split Ducted systems feature Tru-Max functionality, allowing the system to deliver up to 10% above its rated capacity when operating conditions demand it.

This added capacity flexibility helps the system respond to changing building loads, peak ambient conditions and periods of increased demand. By providing additional performance headroom when required, Tru-Max supports consistent comfort, improved temperature control and reliable operation across a wider range of commercial applications.

Low Ambient Cooling

Low ambient cooling capability allows the system to continue operating at outdoor temperatures down to 5°C, supporting applications with ongoing cooling requirements driven by internal heat loads such as equipment or occupancy.

Reliable, Wide Operating Range

GENESIS is designed to operate effectively and efficiently in outdoor temperatures ranging from −15°C to 57°C, supporting reliable performance across a wide range of Australian climates and commercial applications.

Dry Mode

GENESIS includes dry mode function that focuses on moisture removal to help manage indoor humidity levels, supporting improved comfort in humid conditions without excessive cooling.

Enhanced Corrosion Resistance

Hydrophilic Blue Fin coating is applied to both indoor and outdoor coils to provide a protective barrier, helping reduce the risk of corrosion in challenging environmental conditions and diverse Australian climates.

Quiet Mode

GENESIS includes a Quiet Mode that reduces operating noise during cooling or heating by moderating compressor and outdoor fan speeds. This supports quieter operation without compromising comfort, making it suitable for noise-sensitive commercial and light commercial environments.

Adaptive Defrost Logic

Turbo Mode allows GENESIS to temporarily operate at maximum capacity to quickly achieve the desired temperature. After the set period, the system automatically returns to the original operating settings to maintain steady, efficient operation.

Turbo Mode

Performance beyond Peak Demand.

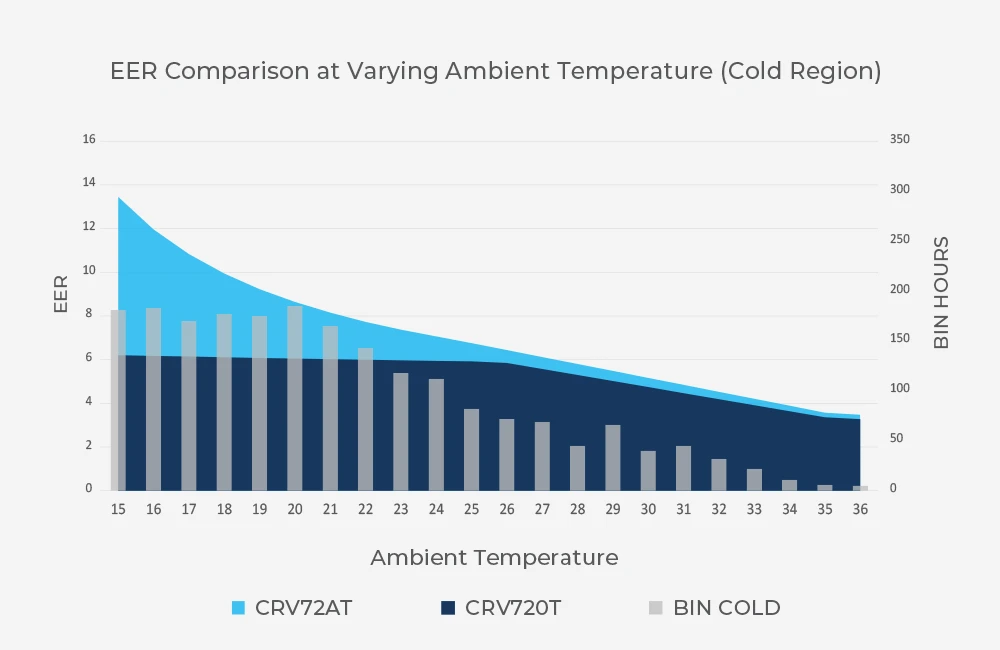

GENESIS has been engineered with energy efficiency at its core, delivering up to 10% lower power consumption compared to its R410A predecessor.

Designed to perform efficiently across real-world operating conditions, GENESIS places a strong focus on part-load performance. This is especially important in commercial applications, where systems are typically selected to meet peak load requirements but spend much of their operating life running below full capacity.

By maintaining efficient performance at reduced loads, GENESIS helps support lower energy consumption, improved operational efficiency and more cost-effective comfort across commercial buildings.

Energy Efficiency

Variable compressor speed operation helps reduce energy spikes associated with frequent start-up and shutdown, supporting more efficient and stable system operation.

Cost Savings

By adjusting output to match demand, the system uses only the energy required for the load, helping reduce overall energy consumption and ongoing operating costs.

Consistent Comfort

Inverter-driven control supports stable temperature regulation, helping maintain a comfortable indoor environment with reduced temperature variation.

Controls

A Choice of Controllers

GENESIS offers a range of controller options to suit different commercial requirements. This includes solutions for local control, remote monitoring and integration with building management systems, supporting efficient operation, effective energy management and ease of use.

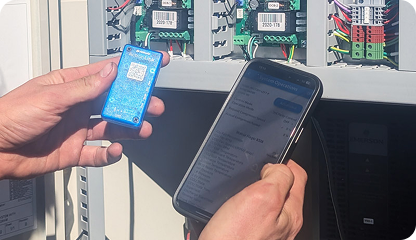

Bluetooth Commissioning Tool (BCT)*

GENESIS supports commissioning via the Bluetooth commissioning tool, allowing technicians to configure and adjust system settings directly on site. This can help streamline commissioning and assist with ongoing maintenance and fault finding across the system lifecycle.

* Standard inclusion on 72-96kW models

Variable Fan Technology (VFT)*

Maintains constant supply static pressure for stable, predictable airflow. By adjusting fan speed to hold the setpoint, each space consistently receives its intended airflow.

* Available as an option, request a quote

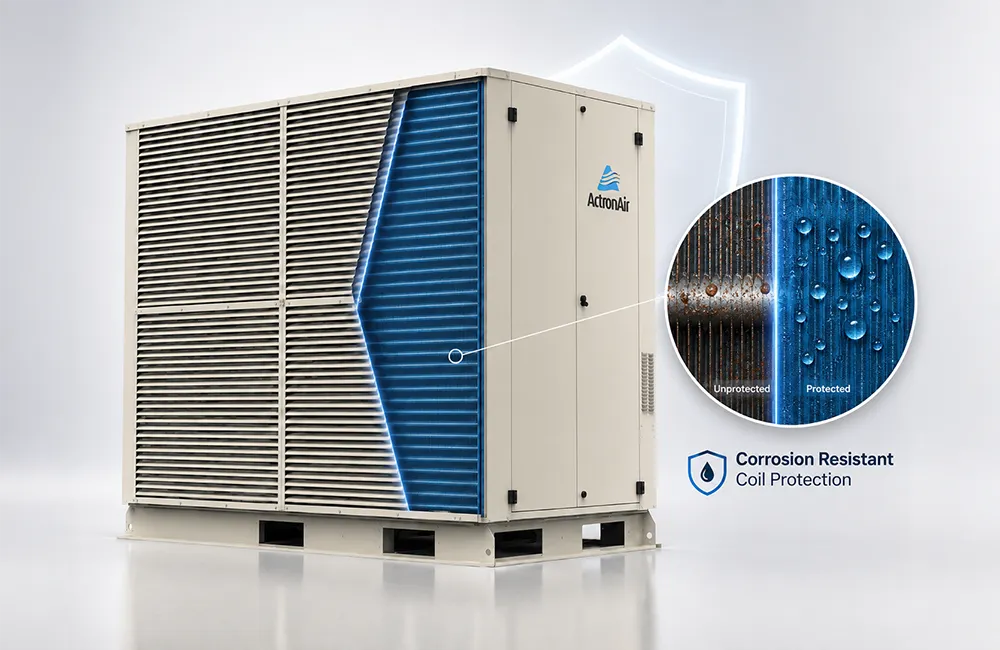

Additional Coil Protection*

GENESIS Commercial Split Ducted systems can be specified with additional coil protection for both indoor and outdoor coils, supporting improved durability in demanding commercial environments.

This added protection helps safeguard key heat exchanger components against corrosion and environmental exposure, making it particularly beneficial for projects in coastal, industrial or harsher operating conditions where long-term reliability and asset protection are important considerations.

* Available as an option, request a quote

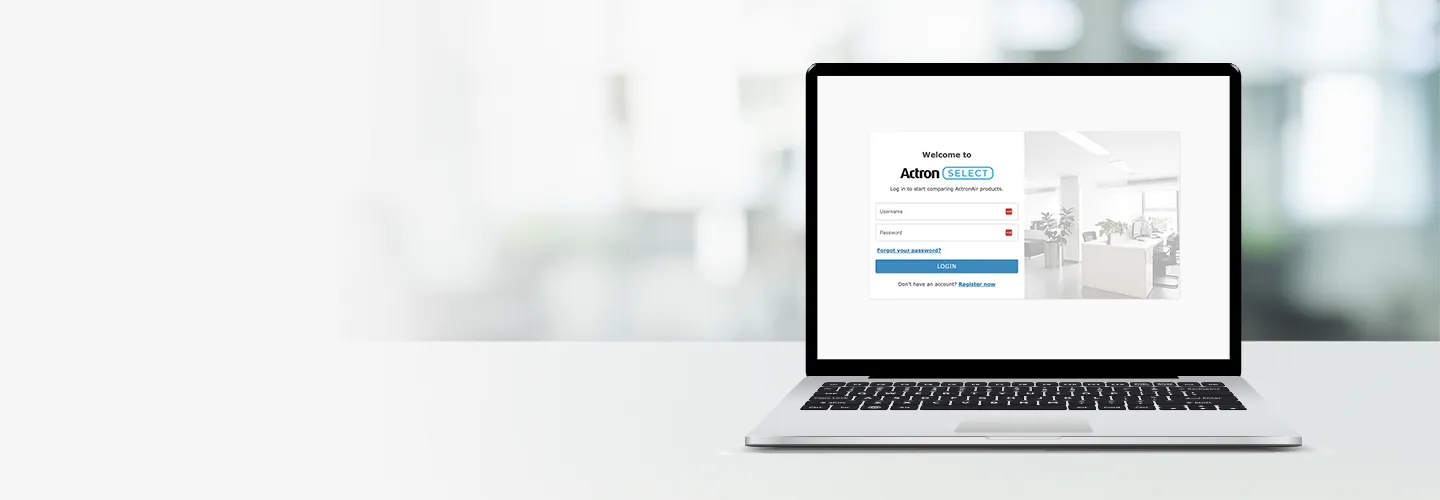

ActronSelect

Fast, Accurate HVAC Selection Made Easy

ActronSelect is our quick and user-friendly commercial HVAC selection platform, helping you find the ideal system with accurate, project-ready results in just minutes.
