Efficiency, Innovation and Adaptability as Standard

Explore the ActronAir VCC Series, our intelligently-designed rooftop package that delivers reliable performance and energy efficiency combined with flexible installation and easy commissioning, to make it the ideal choice for commercial applications. The array of intuitive controls offer simplicity of system management – both during installation and for day-to-day maintenance – as well as enhanced, year-round user comfort.

Capacities:

3 Phase

21.0kW, 29.0kW, 33.0kW

Compressor:

Variable Speed Compressor

Operating Range:

From -10ºC up to 50ºC

Product Features

Consistent
Comfort

Adaptive
Defrost Logic

Turbo Mode

Energy
Efficiency

Louvred
Grille Guard

Foil-Faced
Insulation

Variable Speed
Inverter
Compressors

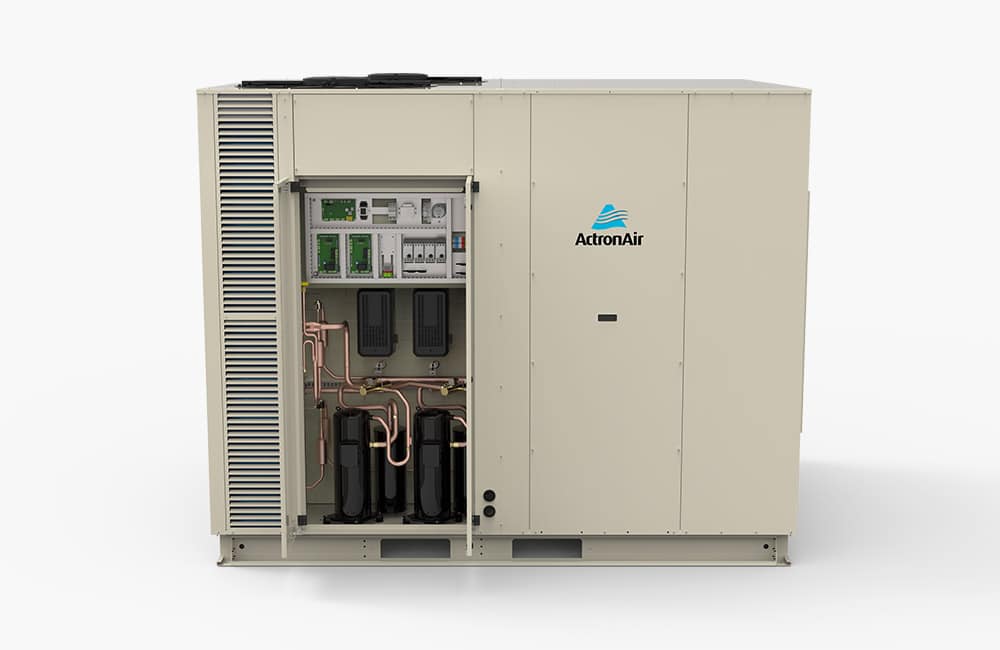

Exceptional Performance

Tru-Inverter Technology and Inverter compressors work together to deliver optimal performance, reduced energy consumption and lower operating costs.

Advanced Technology

Innovative components, including VSD drives and EC plug fans, ensure enhanced comfort, quieter operation and adaptability to changing cooling and heating needs.

Intuitive Controls

With a range of advanced options, including our award-winning NEO controller and remote monitoring via Modbus BMS, optimal user-experience is guaranteed.

Flexible Design

Offering up to 32 handing configurations, interchangeable panels and a wide operating range, the VCC Series is perfect for a variety of different applications.

Performance

Enhanced Capacity Flexibility, with Tru-Max

The ability of Tru-Max Functionality to exceed rated capacity by up to 10% means that the rooftop package unit can adapt to different building demands and environmental conditions as well as unexpected peaks, to ensure consistent temperature and humidity control, and keep everyone comfortable. This flexibility translates into reduced need for maintenance, more economical operation, and cost savings for the end user.

Quiet, Efficient Condenser EC Fans

Condenser EC fans are designed to deliver quieter performance as well as precise control of fan speed and airflow. This improves energy efficiency by reducing power consumption to meet current cooling demands, resulting in lowering operating costs.

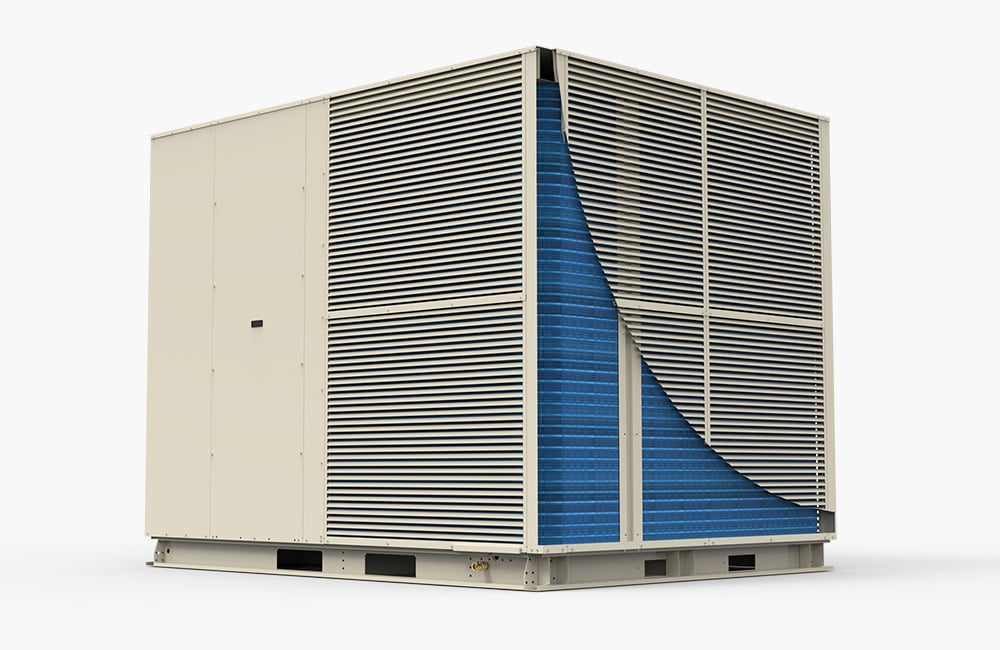

Enhanced Corrosion Resistance

The Hydrophilic Blue Fin coating provides a protective barrier for both indoor and outdoor coils, significantly reducing the risk of corrosion caused by exposure to harsh environmental conditions and Australia’s challenging and diverse climates.

Quiet Mode

Quiet Mode reduces the noise produced during cooling or heating by lowering the speed of the compressor and outdoor fans by up to 4db lower than normal, without compromising indoor comfort. It's ideal for environments such as offices, hotels, schools, or residential areas.

Adaptive Defrost Logic

This feature detects ice formation on the outdoor coil during heating. If the temperature drops below -5 degrees Celsius or pressure falls unusually low, it activates a defrost cycle. This is crucial for maintaining efficient heat exchange and preventing performance degradation due to ice accumulation.

Turbo Mode

Turbo Mode rapidly cools or heats a space by operating the system at maximum capacity for 30 minutes to reach the desired temperature. Once the 30-minute period elapses, the system automatically returns to the pre-established settings, ensuring a smooth transition.

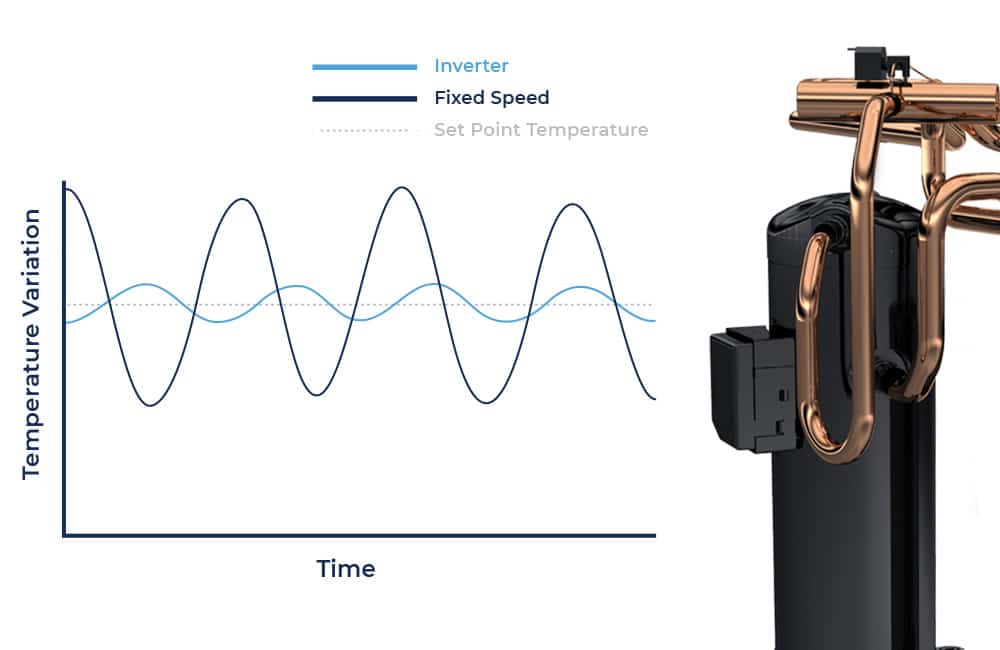

Powered by Tru-Inverter Technology

Tru-Inverter Technology allows the compressor to adjust its speed according to the cooling or heating needs of a space.

Unlike traditional fixed-speed systems that cycle on and off, Tru-Inverter Technology ensures precise load adjustment, improving energy efficiency, reducing energy consumption, and maintaining consistent indoor comfort.

Energy Efficiency

Adjusting the compressor's speed avoids the high energy spikes associated with startup and shutdown cycles, making the operation more efficient and environmentally friendly.

Cost Savings

This dynamic adjustment means the system only uses the necessary amount of energy, significantly reducing energy consumption and lowering utility bills.

Consistent Comfort

The precise control of the inverter compressor ensures a consistent and comfortable indoor environment and reduces unnecessary temperature fluctuations.

Save with Part-Load Operation

With inverter compressors and True-Inverter Drive Technology combined, the system can operate efficiently at reduced capacities (part load). This is ideal for commercial settings, where units often run below full capacity during off-peak periods. It improves energy efficiency, reduces operating costs, and maintains consistent indoor comfort while extending the lifespan of the equipment.

Energy Efficiency

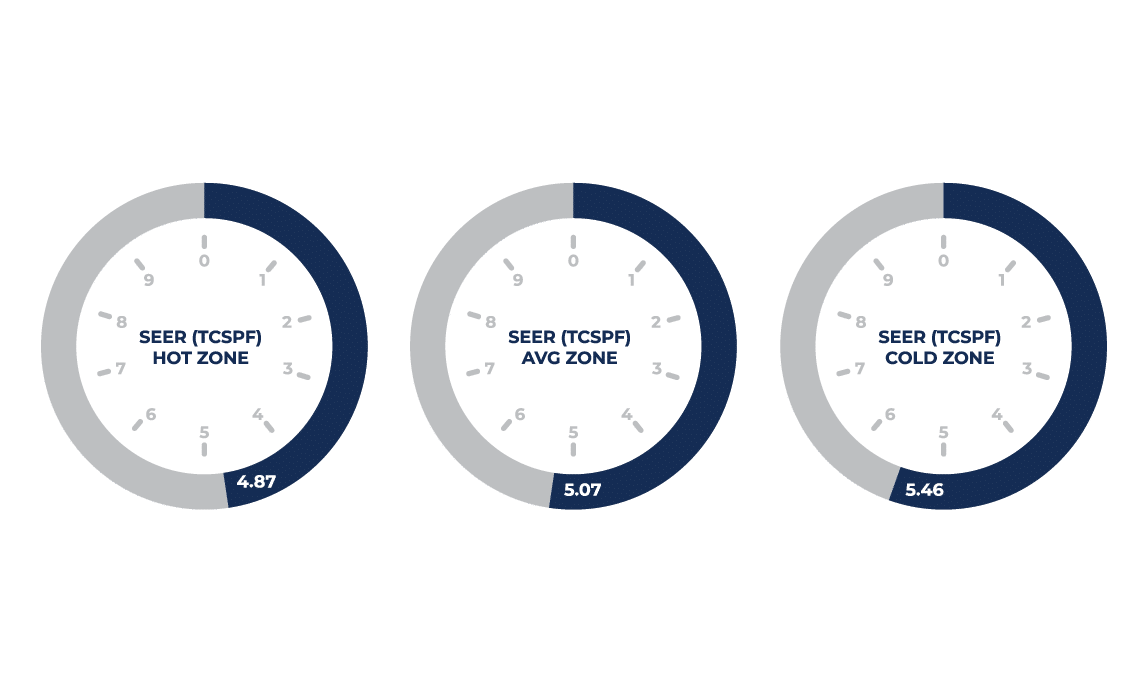

Seasonal Energy Efficiency (SEER)

SEER is a measurement of energy efficiency of units across various temperatures and load conditions. Units with high SEER ratings provide greater cooling output while using less energy, making them ideal for operating in different climate zones and supporting sustainable, cost-effective building operations.

Up to 32 Handing Configurations

VCC provides up to 32 different handing configurations, allowing for customised solutions to meet specific building requirements. This versatility ensures optimal performance, easier installation, and adaptability to a wide range of applications, enhancing compatibility and reducing installation costs.
* Applicable on some models

Double-Slopped Main Drain Tray*

The double-slope design of the drain tray ensures more effective drainage of condensate, preventing water accumulation and reducing the risk of overflow or leaks. This improves indoor air quality, reduces maintenance needs, and ensures reliable operation, especially in humid conditions.
* Applicable on some models

Foil-Faced Insulation for greater efficiency

25mm Foil-Faced Insulation aids with improving energy efficiency by reducing heat gain and loss. It also resists mould and mildew, thus promoting healthier indoor air quality and providing durable, long-lasting performance.

Controls

A Choice of Controllers

A range of controllers for VCC units are available, providing flexibility to meet various commercial needs. Options include remote monitoring and integration with building management systems (BMS), enhancing efficiency, energy management, and ease of use.

Louvred Grille Guard for Extra Protection

By shielding the unit from environmental impacts, the louvered grille guard extends the lifespan of the unit, reducing the need for repairs or replacements caused by weather-related damage.

Pull-Out Filter Tray for Ease of Maintenance*

The tray can easily be removed without the need for screws, making filter access quick and straightforward. This simplifies routine maintenance and cleaning, saving time and effort.

* Applicable on some models 
* Filters not included 
